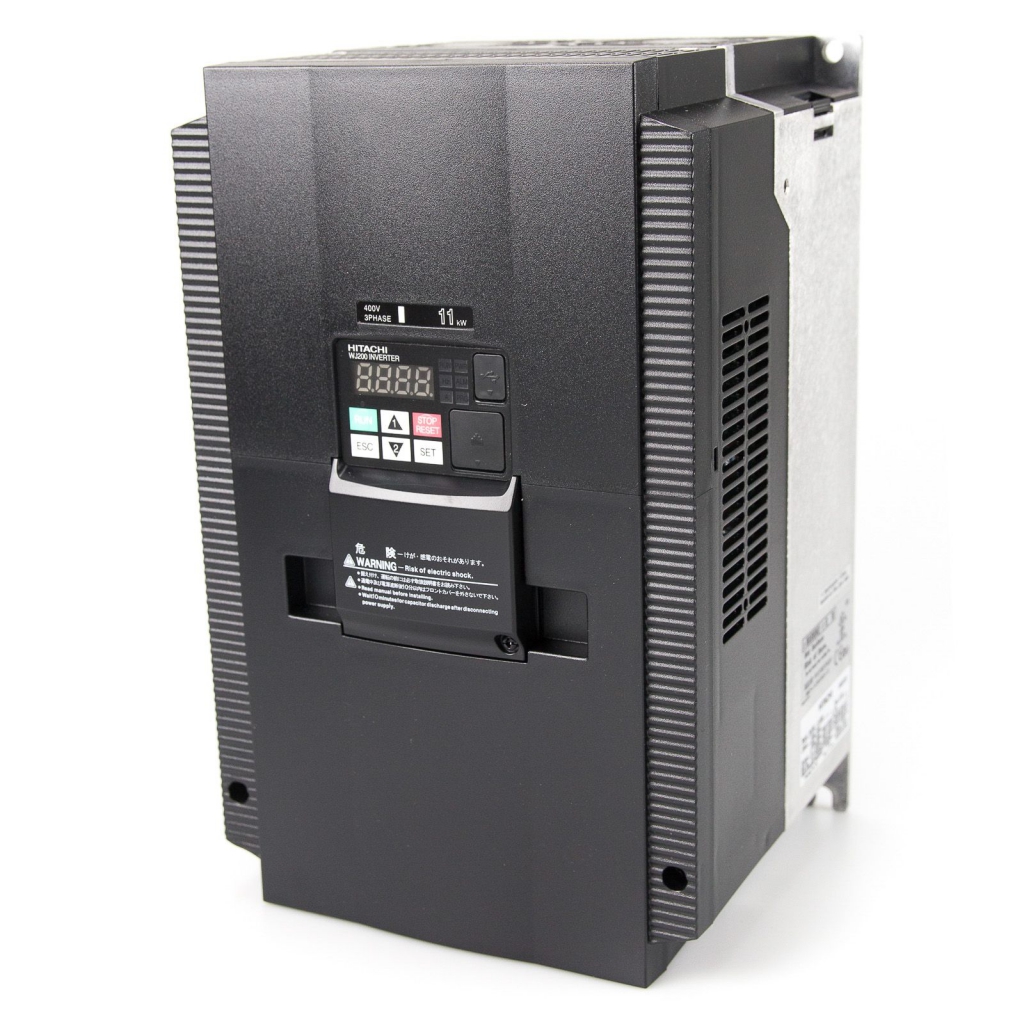

Hitachi WJ200-110HF | 11kW/15kW | 24A/31A Variable frequency drive | 3Ph-3Ph | 380-480V | IP20 | 180x296x175mm | 5.5kg | Dual rating
For fans, pumps, compressors, mixers, conveyor belts, lifts, hoists, centrifuges and washing machines.
200% starting torque (with CT, heavy selection).
Equipped with an internal braking unit (excluding braking resistor).
PTC input.
Programmable analog 0-10V output.
Internal PID controller.
with display.
RS485 Modbus RTU.
Spring Signal Clamps.
Easy sequence PLC.
Safe stop function.
Mini USB and RS422 port.
Dual Rating:
CT (Heavy Duty 60sec. 150%).
VT (Normal Duty 60sec 120%).
CE, UL, C-UL, C-Tick.
