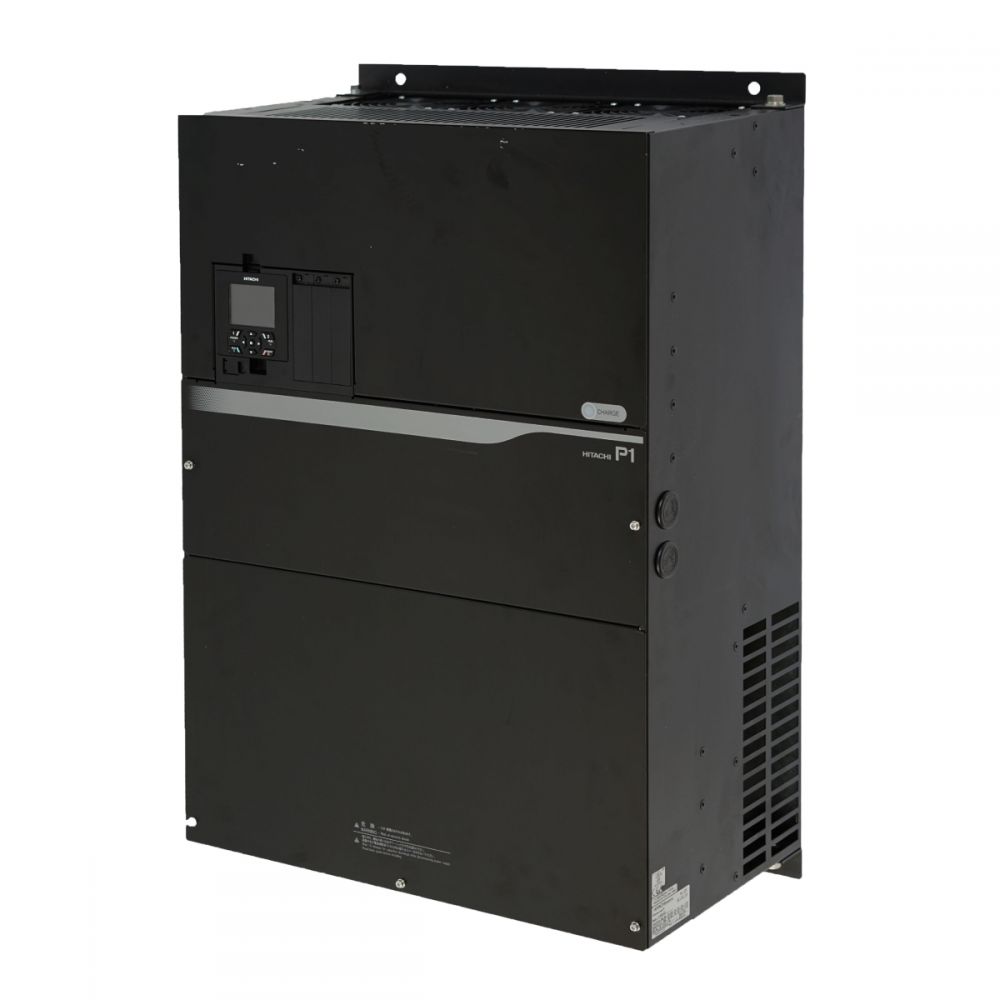

P1-03160HFEF | 160kW/316A | Variable frequency drive | IP20

, ,

12.139,00 Br.

Hitachi P1-03160HFEF | 160kW/316A Variable frequency drive | SJ-P1 Series | 3Ph-3Ph | 380-500V | IP20 | 480x740x270mm | 70kg | TFT Display

Interested? Apply for a business account

Hitachi P1-03160HFEF | 160kW/316A Variable frequency drive | SJ-P1 Series | 3Ph-3Ph | 380-500V | IP20 | 480x740x270mm | 70kg | TFT Display

Suitable for fans, pumps, compressors, mixers, conveyors, elevators, hoists, shredders, winding systems, centrifuges, and washing machines

High starting torque: 200% at 0.3 Hz
Sensorless vector closed-loop control
Overload capacity: VLD 110%/1 min, LD 120%/1 min, ND 150%/1 min
Built-in EMC filter
Positioning functions
Safe Torque Off (STO) according to EN ISO 13849-1:2008
(Safety category 3/PLd) and IEC 60204-1 stop category 0
Multilingual TFT color display
Integrated PLC function
PTC input
4 independent internal PID controllers
RS485 Modbus RTU interface on terminals
Global standards (CE, UL, c-UL, C-Tick, CSA)

Weight 70000 g
Naam bij leverancier

P1-03160HFEF

Productcode

P1-03160HFEF

Hitachi SJ-P1 Series (pdf, 2810KB)
Hitachi Basic Guide SJ-P1 (pdf, 6229KB)
