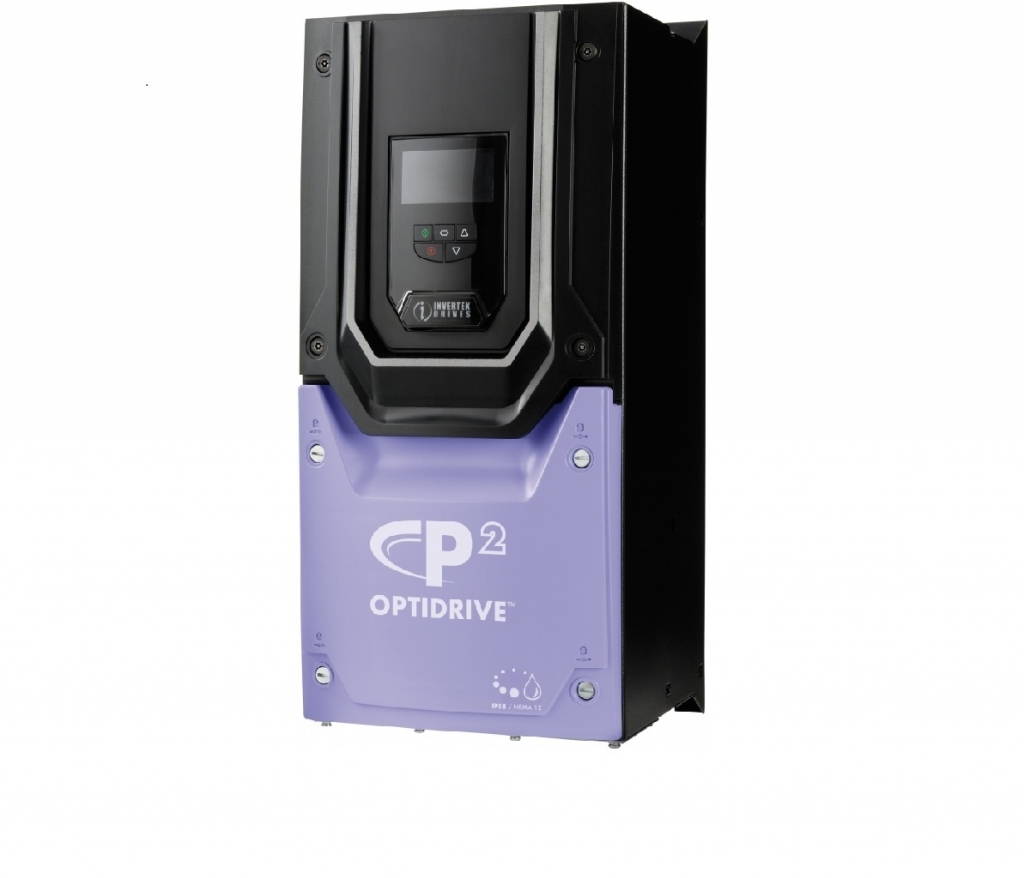

Invertek ODP-2-44150-3KF4N-MN | 15kW/30A Variable frequency drive | 3Ph-3Ph | 380-480VAC | 171x450x252mm | IP55 | 11.5kg | TFT Display
Global Marine DNV approval.
For fans, pumps, compressors, mixers, conveyor belts, lifts, hoists, shredders, wrap Systems, centrifuges, washing machines.
Mains filter (EN61800-3 Cat. C1/C2).
Ambient temperature +50C.
Safety plug according to IEC 61508 SIL2.
Removable terminals.
Standard CANopen and Modbus RTU.
PLC functionality.
Vector control with or without encoder (200% torque).
Suitable for permanent magnet motors.
